Production capacity: 5-6 cans/min (related to the can size);
Adaptation range: can diameter φ70-φ127mm, can height 80-190mm
Voltage: three-phase 380V 50/60Hz;
Machine power: 3KW
Weight: 500kg
Dimensions: L2000 * W800 *H1850 mm
Working pressure (compressed air) ≥0.6MPa
Air consumption (compressed air): about 80L/min
Nitrogen source pressure ≥0.4MPa
Nitrogen consumption: about 50L/min
Residual oxygen ≤3%
1.This equipment is suitable for all kinds of round opening tinplate cans, plastic cans, first vacuum then nitrogen, and finally sealed. Effectively extend the product shelf life, ideal for food, beverage, pharmaceutical and other industries.
2. Automated control and operation to improve production efficiency and save labor costs
3. The can lid joint control device, when the can body enters, the corresponding cover is provided, if there is no can, there is no cover.
5. The seaming rollers and chuck are processed by Cr12 die steel, which is durable and high tightness.
6. The residual oxygen content is less than 3%, effectively extending the shelf life of the product and improving product quality.

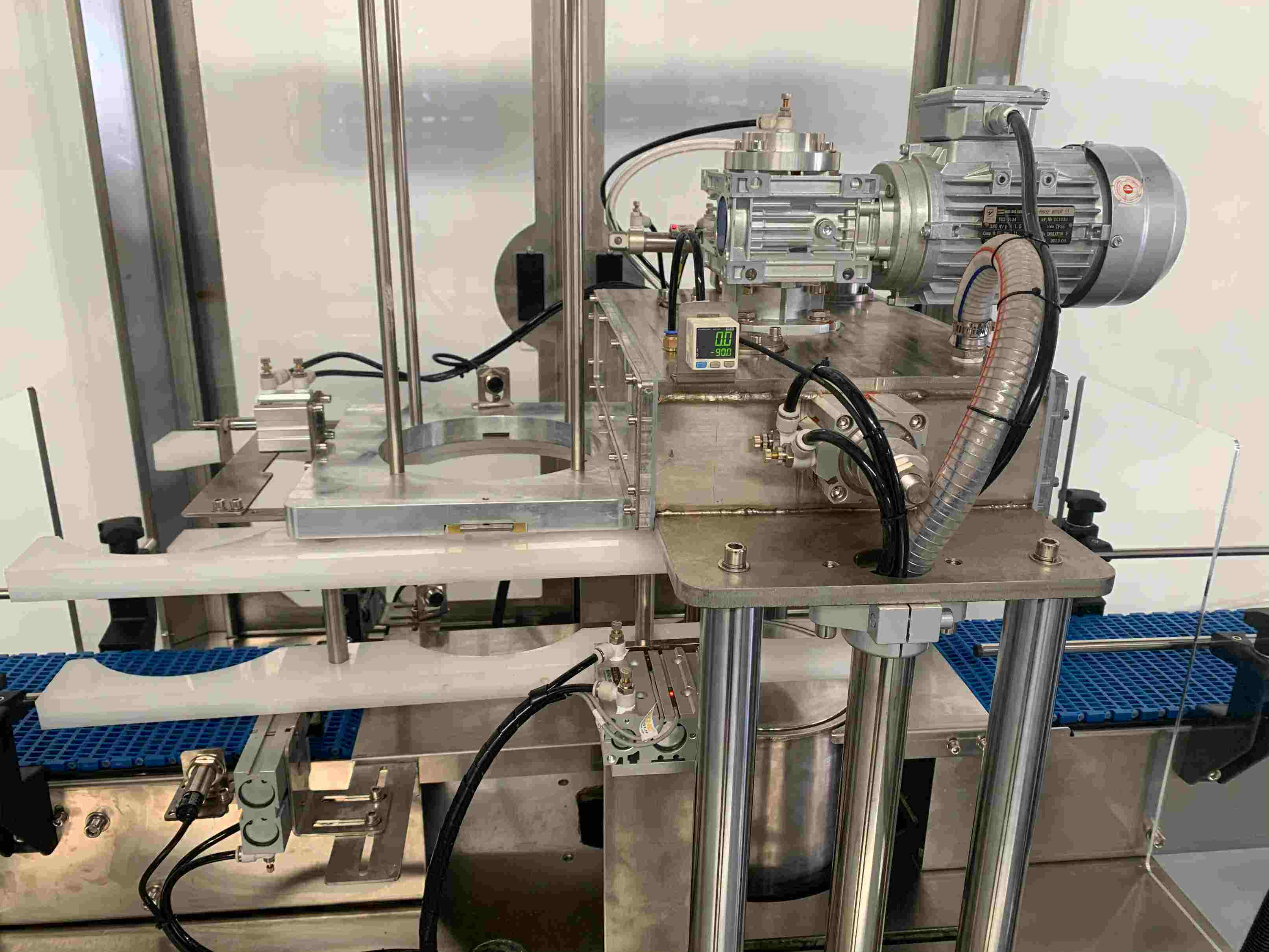

Vacuuming, nitrogen gas filling and can sealing processes could be finished at the same time within the vacuum chamber.

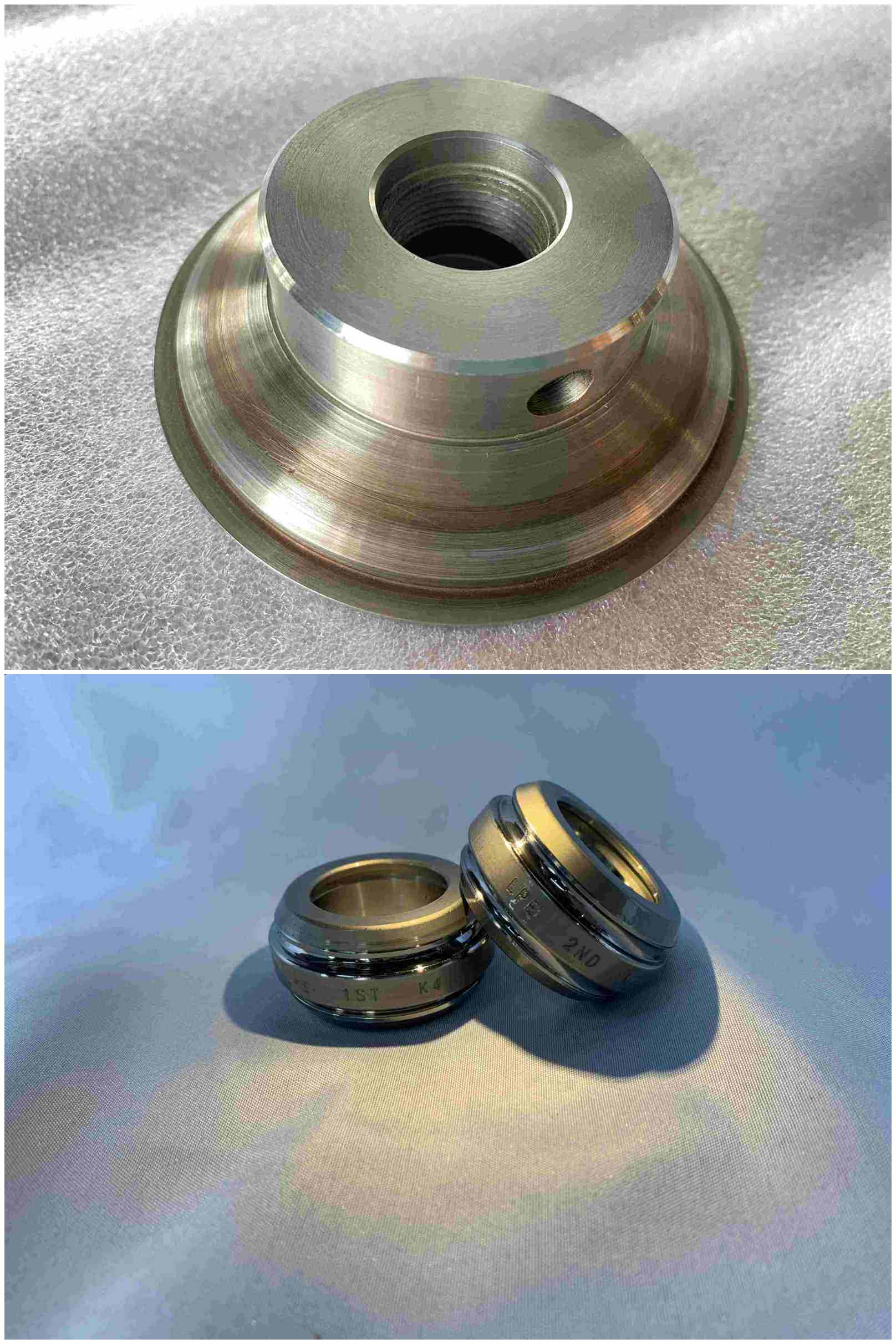

The seaming rollers and chuck are processed by Cr12 die steel, durable and high tightness

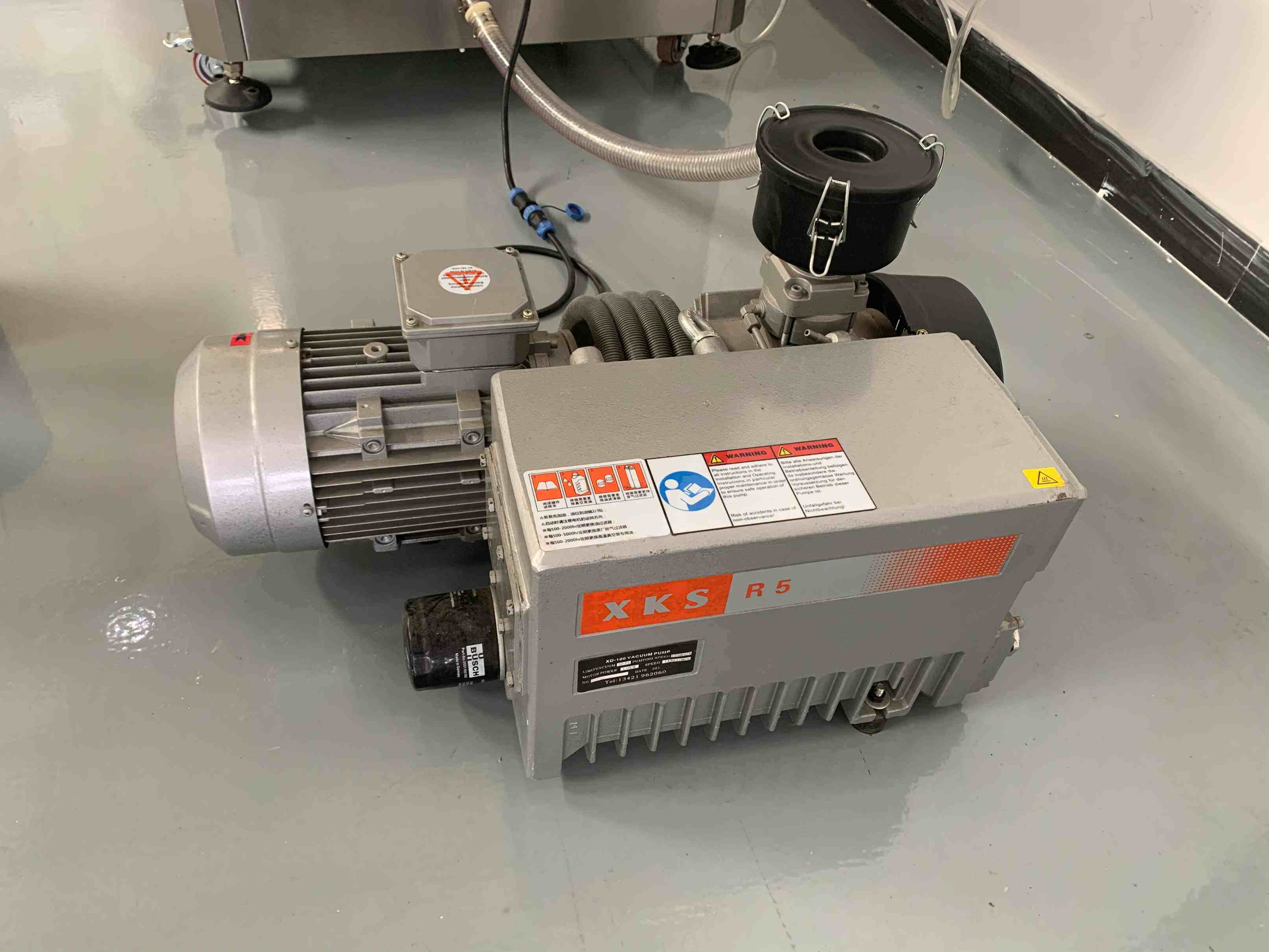

Extremely low vacuum degree can be achieved with high-pressure vacuum pump.

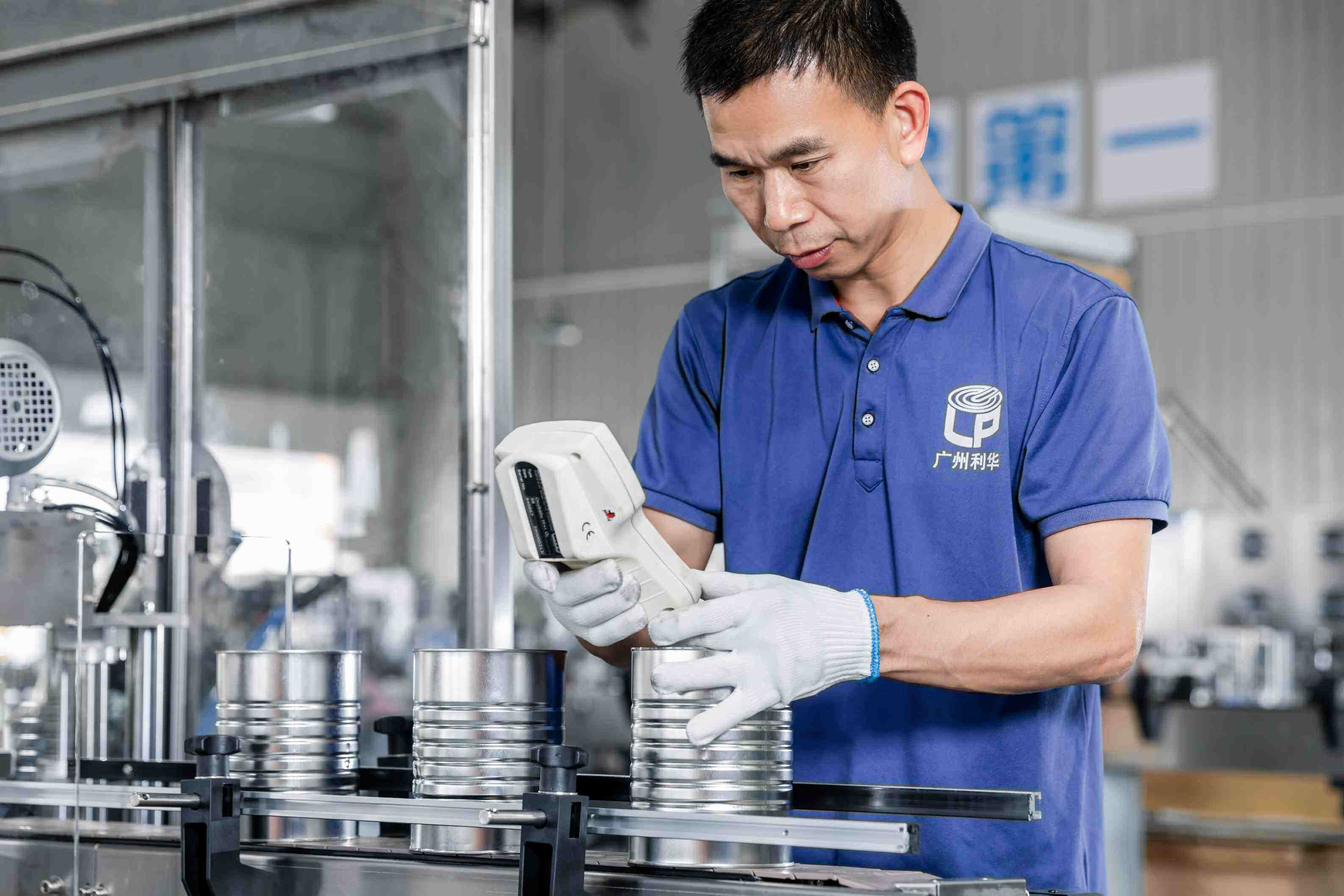

The residual oxygen content is less than 3%, effectively extending the shelf life of the product and improving product quality.
All electrical and pneumatic components are adopted by famous brands, like Schneider, Siemens, AirTAC.
