1. Number of sealing head : 1
2.Number of seaming roller: 2 (1first operation,1 second operation)
3.Sealing speed: 23 cans / minute
4.Sealing height: 25-220mm
5.Sealing can diameter: 35-130mm
6. Working temperature: 0 ~ 45 °C, working humidity: 35 ~ 85%
7. Working power: single-phase AC220V 50/60Hz
8.Total power: 0.75KW
9.Weight: 130KG (about)
10.Dimensions:L 55 * W 45 * H 140cm
1.No gear transmission, low noise, easy to maintain.
2.The motor is placed below, the center of gravity is low, and it is safe to move and use.
3.Sealing the can while placing the can, improve the productivity of workers.
4. The tank body does not rotate during the sealing process, which is safe and efficient, and is especially suitable for the sealing of fragile and liquid products;
5.Start button desktop manual, to avoid a safety accident caused by foot pedaling, more secure.
Application：
Applicable for the sealing of tin cans, aluminum cans, plastic cans and tin cans. It is an ideal packaging equipment for food, beverage, Chinese medicine drinks, chemical industry and other industries.

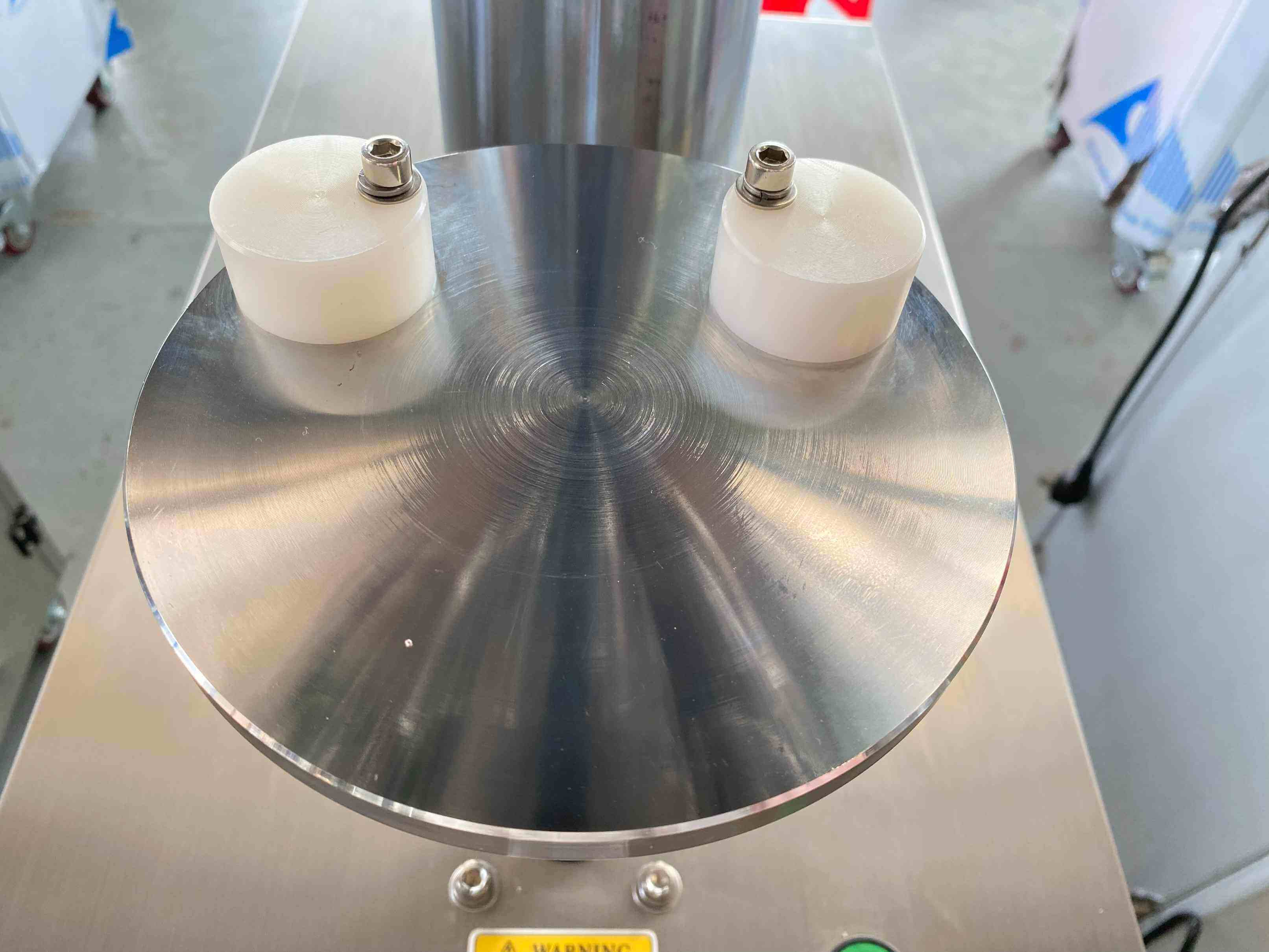

Using two positioning parts, it’s easy to adjust when you have different can sizes.

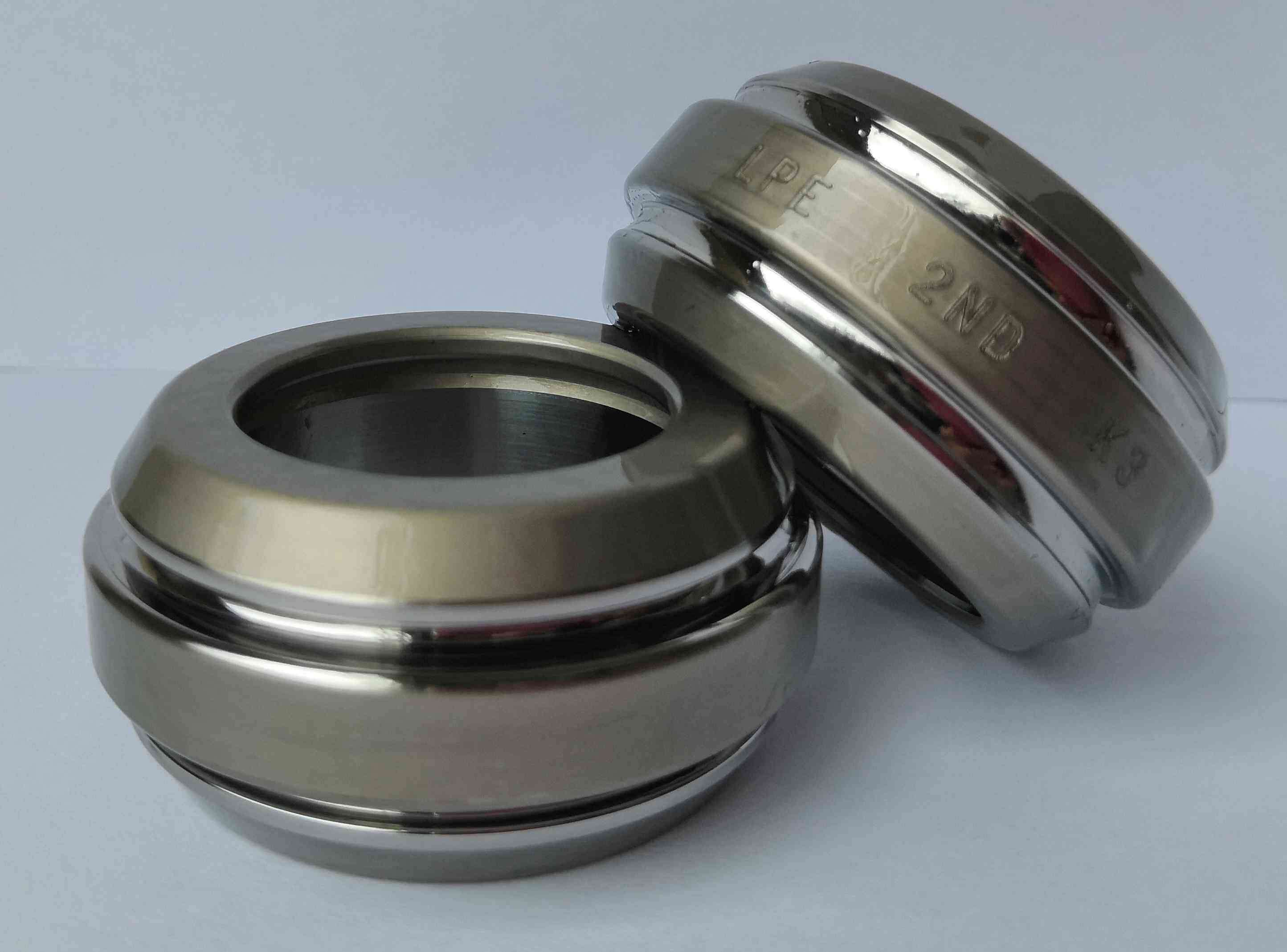

The roller is imported from Taiwan. The material of the can seaming roller is made of SKD Japanese special mold steel, which has a life span of more than 5 million seals on each side.
The first seaming roller and the knife-edge with hooked groove are deeper than the second hob. It rolls the rim in the process of sealing.
The second seaming roller with relatively smooth knife edge and without hooked groove. The seaming roller has the function of blank pressing in the process of sealing.

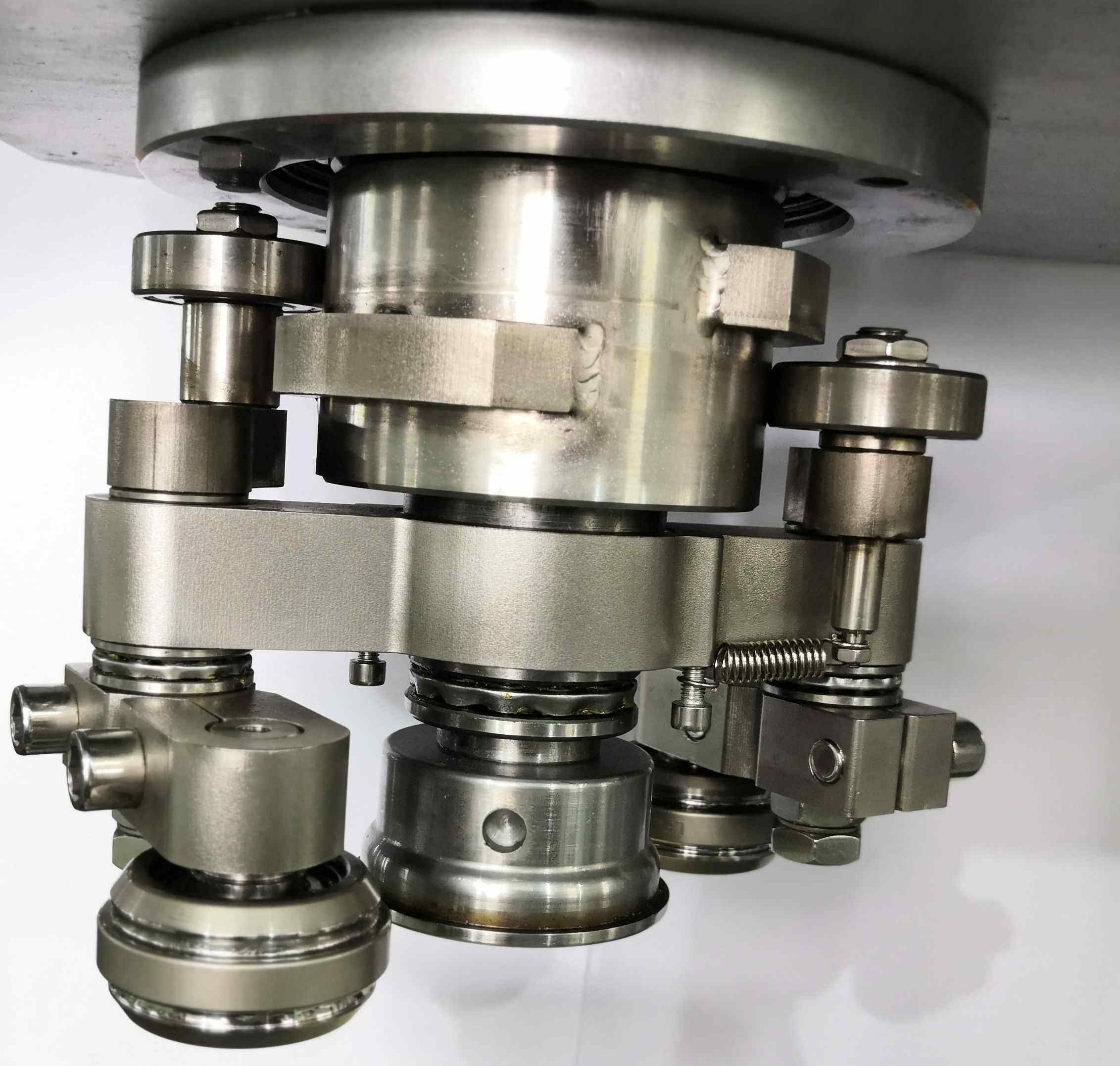

It adopts a double-seamed roller to install symmetrically, one of which completes the crimping, and the other one completes the pressing. The principle is simple, adjustment is convenient, and the force is balanced.

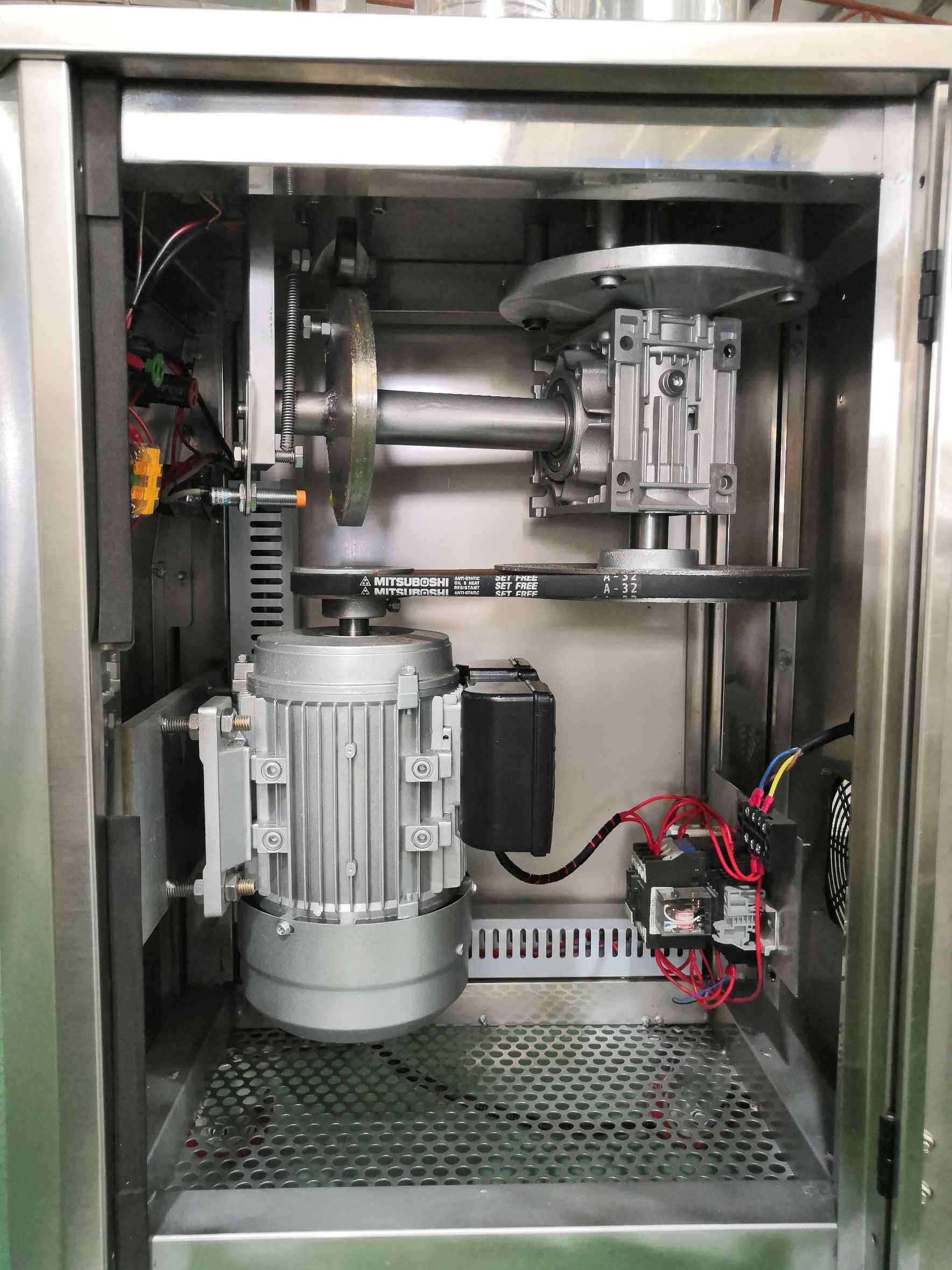

The motor is placed below, the center of gravity is low, and safe to move and use.

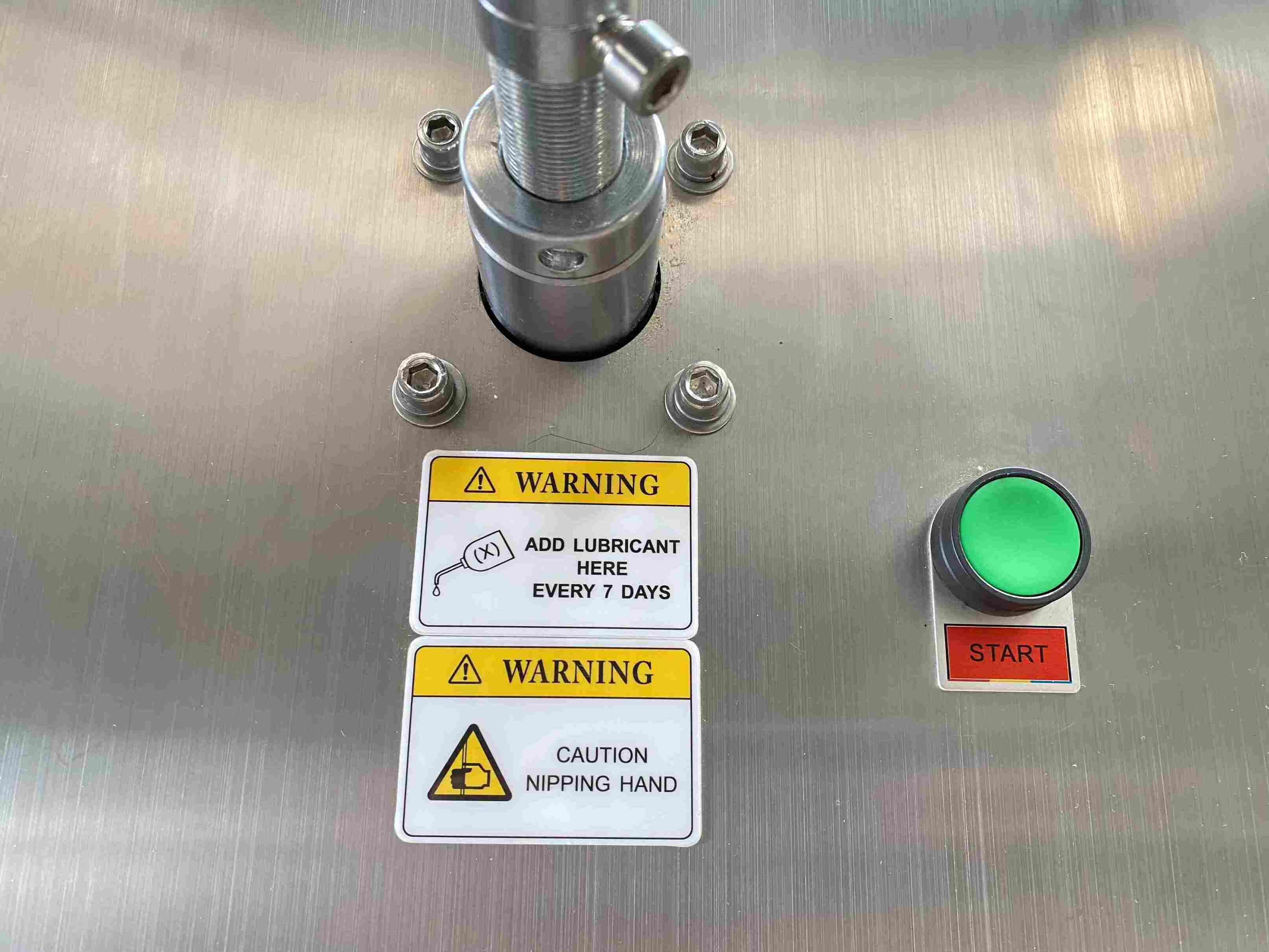

Start button desktop manual, avoiding a safety accident caused by foot pedaling, more secure.

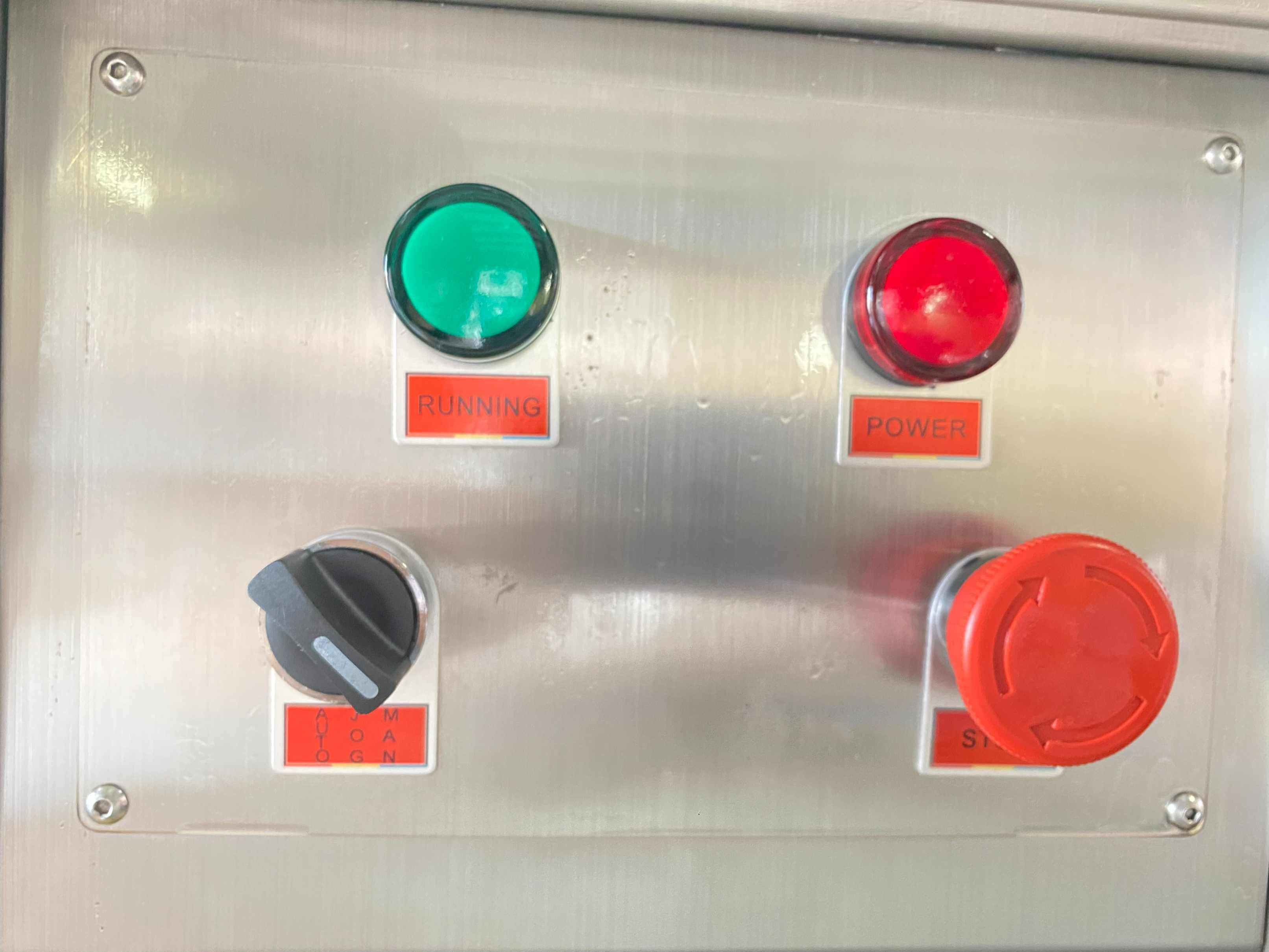

There are three modes - “AUTO,” “JOG,” “MAN,” and it is easy to shift and operate.
