Semi automatic double chambers vacuum N2 flushing can seaming machine

Semi automatic double chambers vacuum N2 flushing can seaming machine

1. Number of sealing head : 1

2. Number of seaming roller: 2 (1 first operation, 1 second operation)

3. Sealing speed:4-6 cans / min (related to the can size)

4. Sealing height: 25-220mm

5. Sealing diameter: 35-130mm

6. Working temperature: 0 ~ 45 ° C, working humidity: 35 ~ 85%

7. Working power supply: single phase AC220V 50/60Hz

8. Total power:2.4 KW

9. Weight: 410KG (about)

10. Dimensions:L 100 * W 85 * H 165cm

11. Working pressure (compressed air) ≥0.6MPa

12. Air consumption (compressed air): about 60L/min

13. Nitrogen source pressure ≥0.2MPa

14. Nitrogen consumption: about 50L/min

15. Minimum vacuum pressure -0.07MPa

16. Residual oxygen content <3%

Inquiry

Description

Semi Automatic Double Chambers Vacuum N2 Flushing Can Seaming Machine

1.This equipment is suitable for all kinds of round tinplate cans, plastic cans. First vacuum then nitrogen, and finally sealed. Effectively extend the product shelf life, ideal for food, beverage, pharmaceutical and other industries.

2. It adopts the working mode of single head and double chambers. In the process of completing the sealing work in one chamber, the other chamber can complete the work of placing the can, making it safer and more productive in the process of operating the equipment.

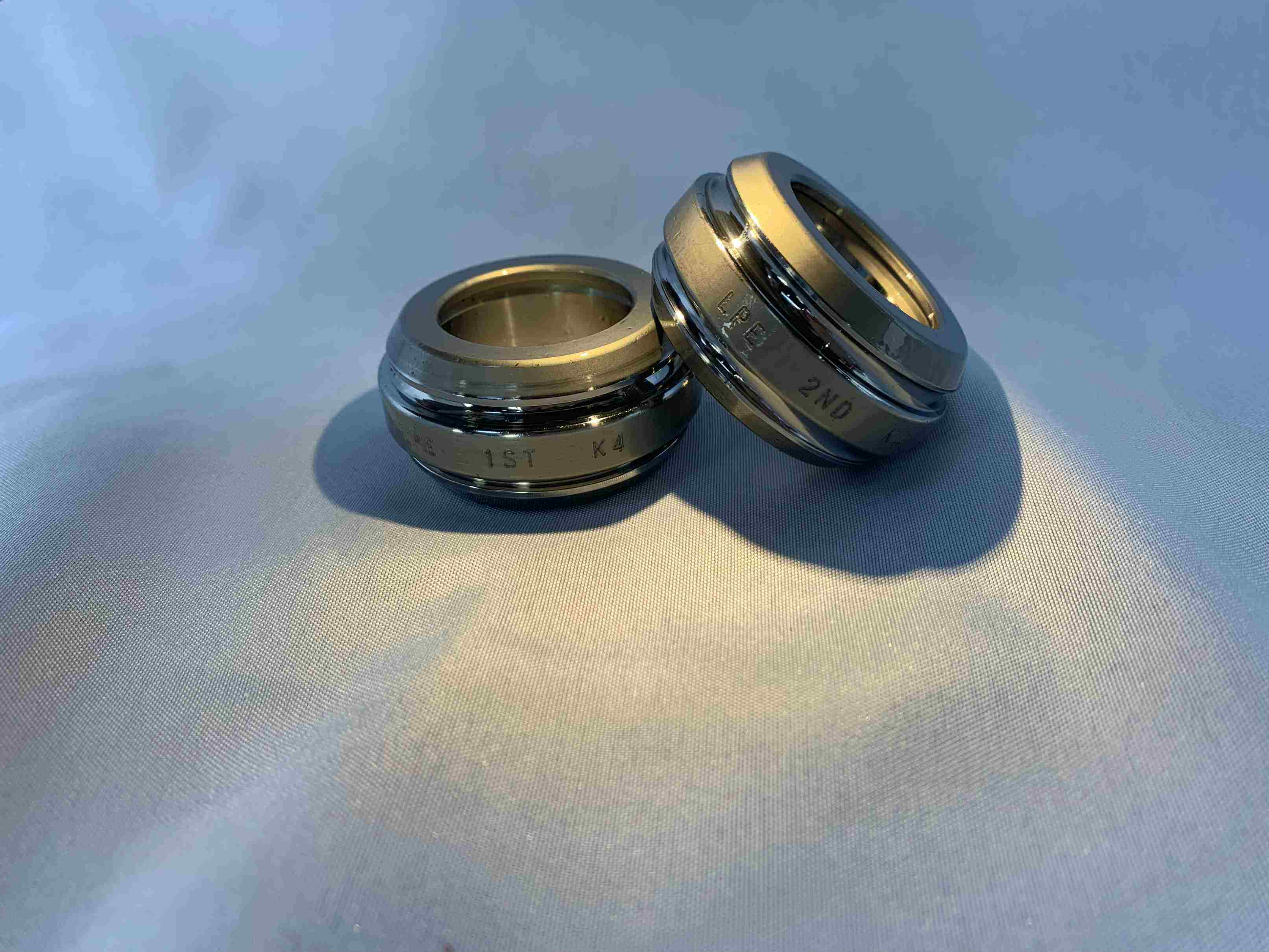

4. The seaming rollers and chuck are processed by Cr12 die steel, which is durable and high tightness.

5. The residual oxygen content is less than 3%, effectively extending the shelf life of the product and improving product quality.

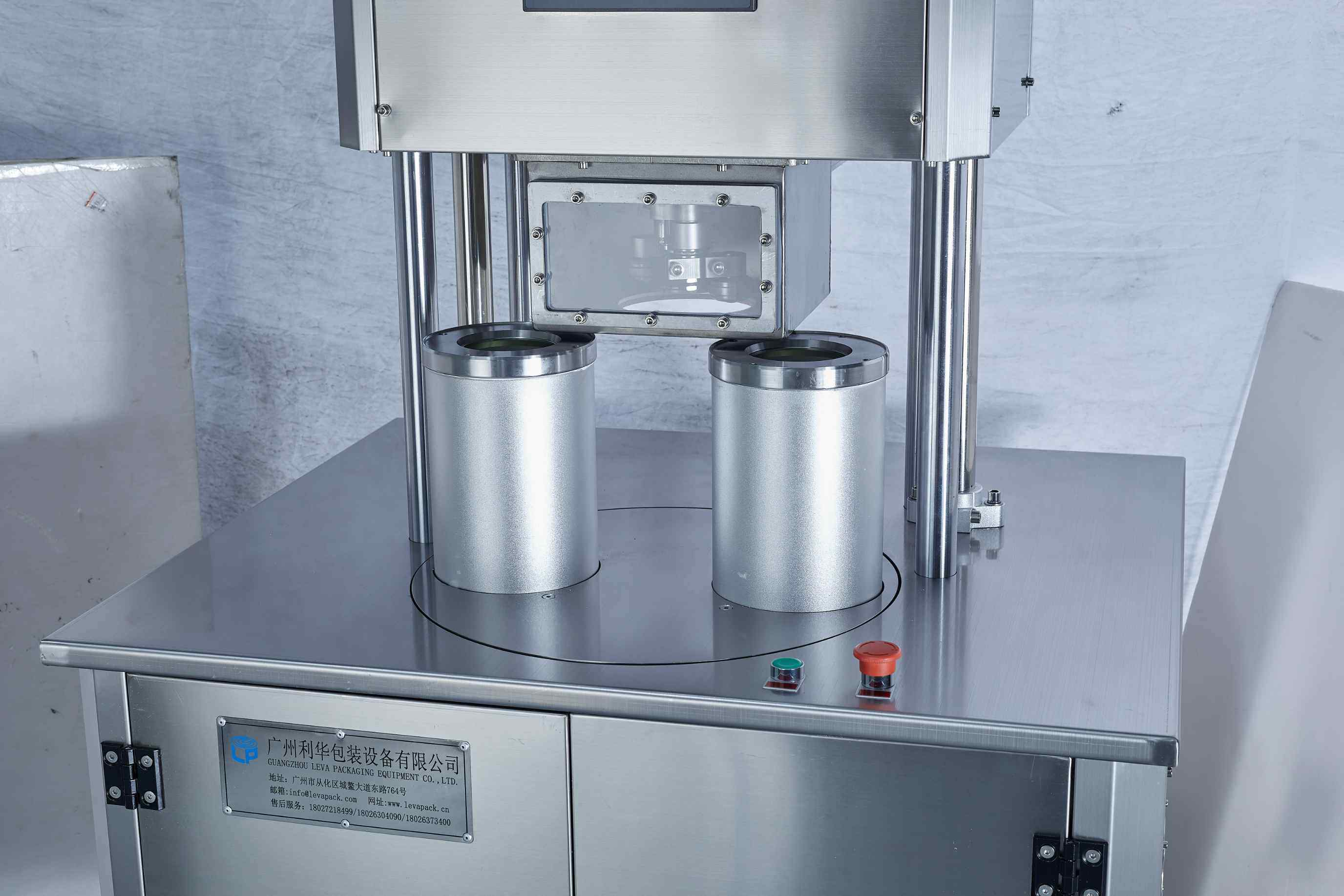

Double Chambers

It adopts the working mode of double chambers. In the process of completing the sealing work in one chamber, the other chamber can complete the work of placing the can, making it safer and more productive in the process of operating the equipment.
