1. Number of sealing head : 1
2.Number of seaming roller: 2 (1first operation,1 second operation)
3.Sealing speed: 23 cans / minute
4.Sealing height: 25-220mm
5.Sealing can diameter: 35-130mm
6. Working temperature: 0 ~ 45 °C, working humidity: 35 ~ 85%
7. Working power: single-phase AC220V 50/60Hz
8.Total power: 0.75KW
9. Air pressure: 0.3-0.5Mpa
10.Weight: 150KG (about)
11.Machine dimensions:L 72* W 47 * H 140cm
12.Packaging size :L93 * W 51* H 160cm
Features：
1.There are four seaming rollers around the chuck.The seaming rollers are very hard because of the chrome steel material.
2.No gear transmission, low noise, easy to maintain.
2.The motor is placed below, the center of gravity is low, and it is safe to move and use.
3.Sealing the can while placing the can, improve the productivity of workers.
4. The tank body does not rotate during the sealing process, which is safe and efficient, and is especially suitable for the sealing of fragile and liquid products;
Application：
Applicable for the sealing of tin cans, aluminum cans, plastic cans and tin cans. It is an ideal packaging equipment for food, beverage, Chinese medicine drinks, chemical industry and other industries.

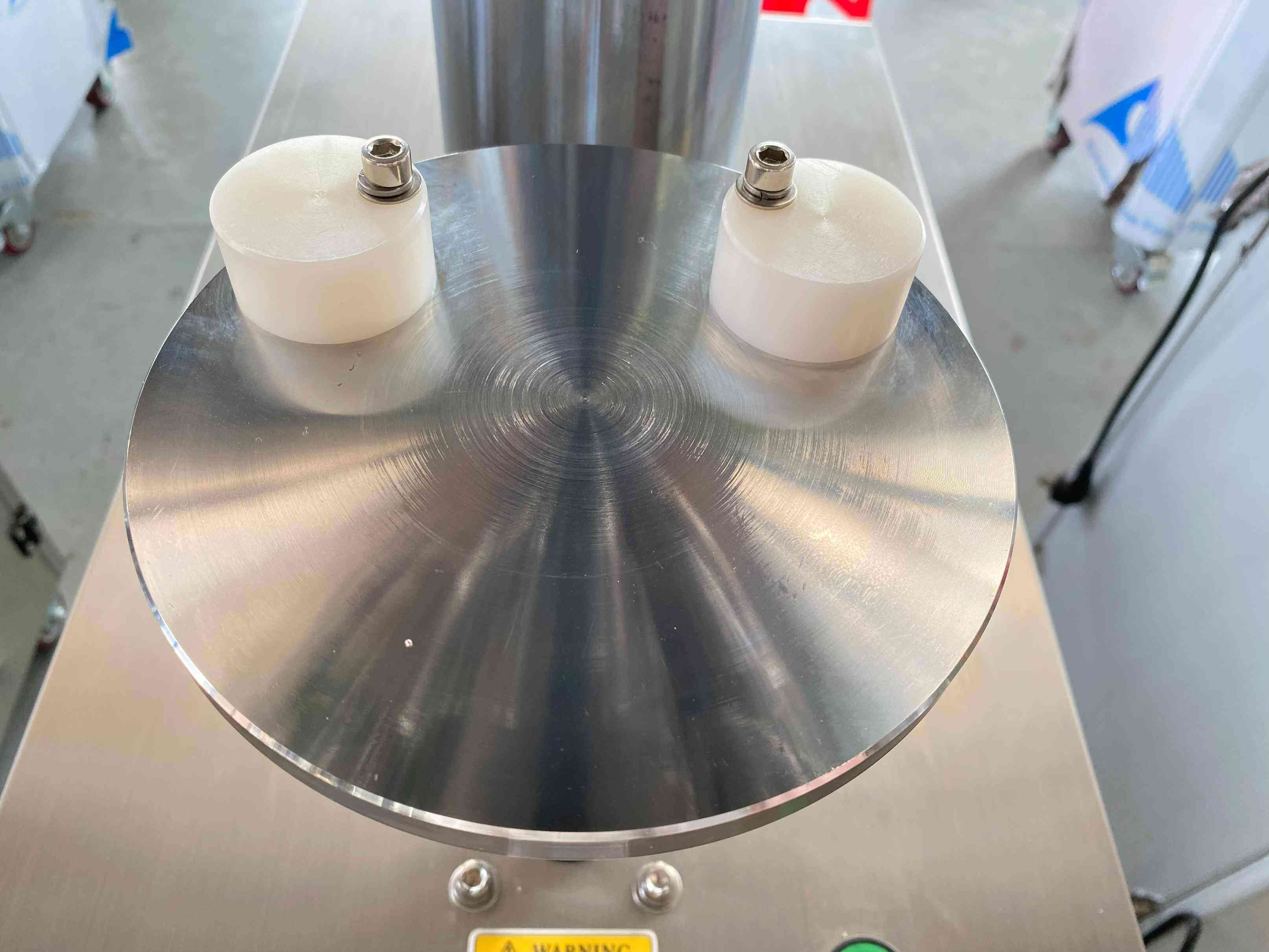

Using two positioning parts, it’s easy to adjust when you have different can sizes.

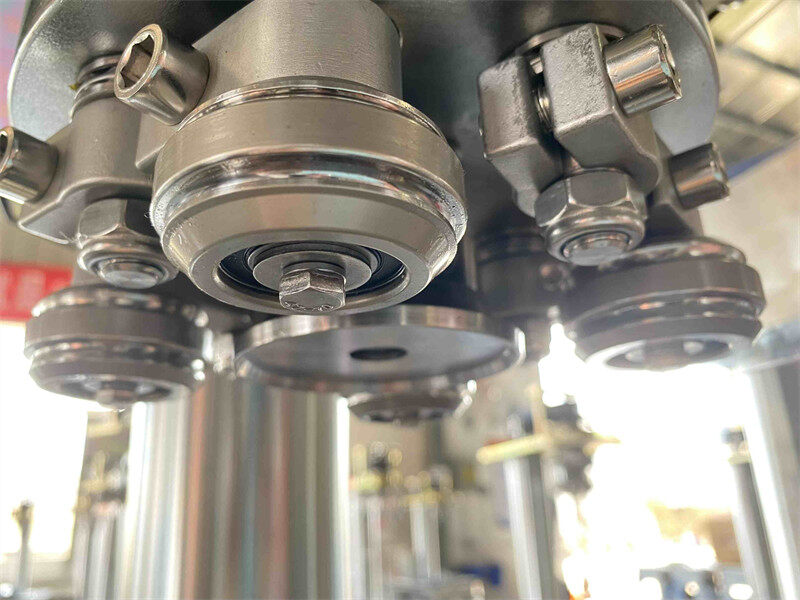

The roller is imported from Taiwan. The material of the can seaming roller is made of SKD Japanese special mold steel, which has a life span of more than 5 million seals on each side.
Adopting four seaming rollers from Taiwan, they are used for symmetrical installation. Two of them complete the hem, and the other two complete the crimping. The principle is simple, the adjustment is convenient, and the force is balanced.

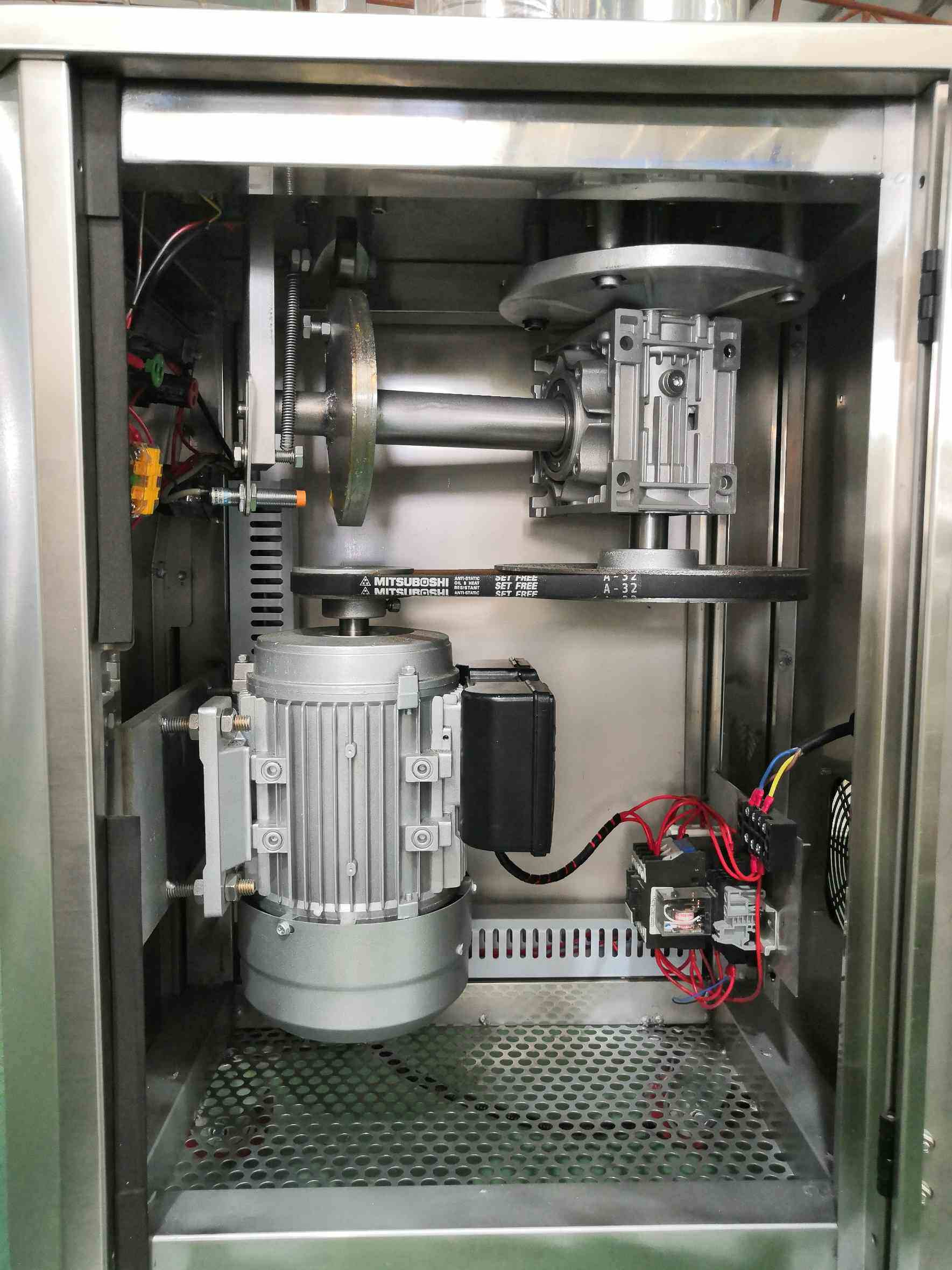

The motor is placed below, the center of gravity is low, and it is safe to move and use.

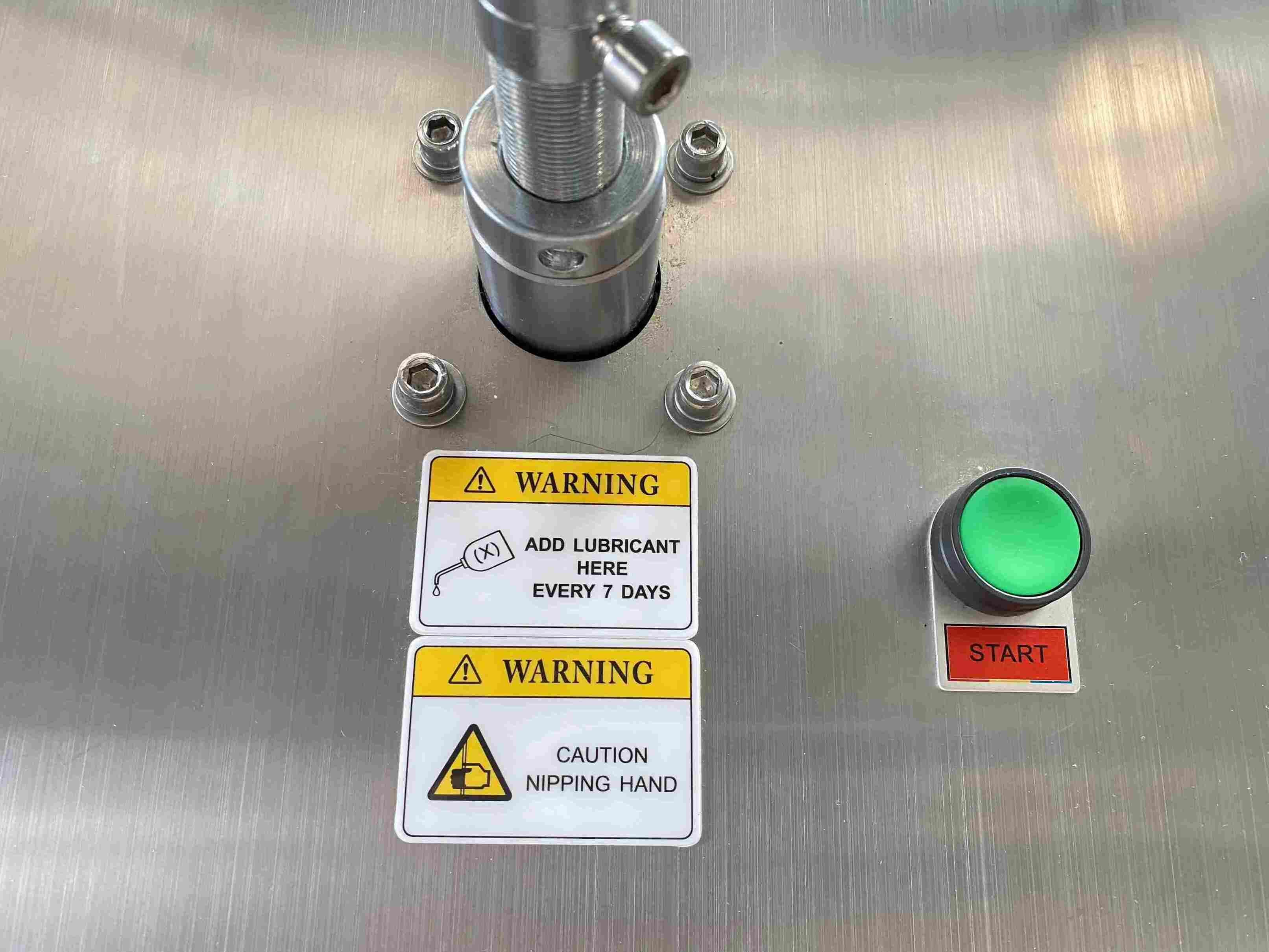

To avoid a safety accident caused by foot pedaling, start button desktop manual, which is more secure.

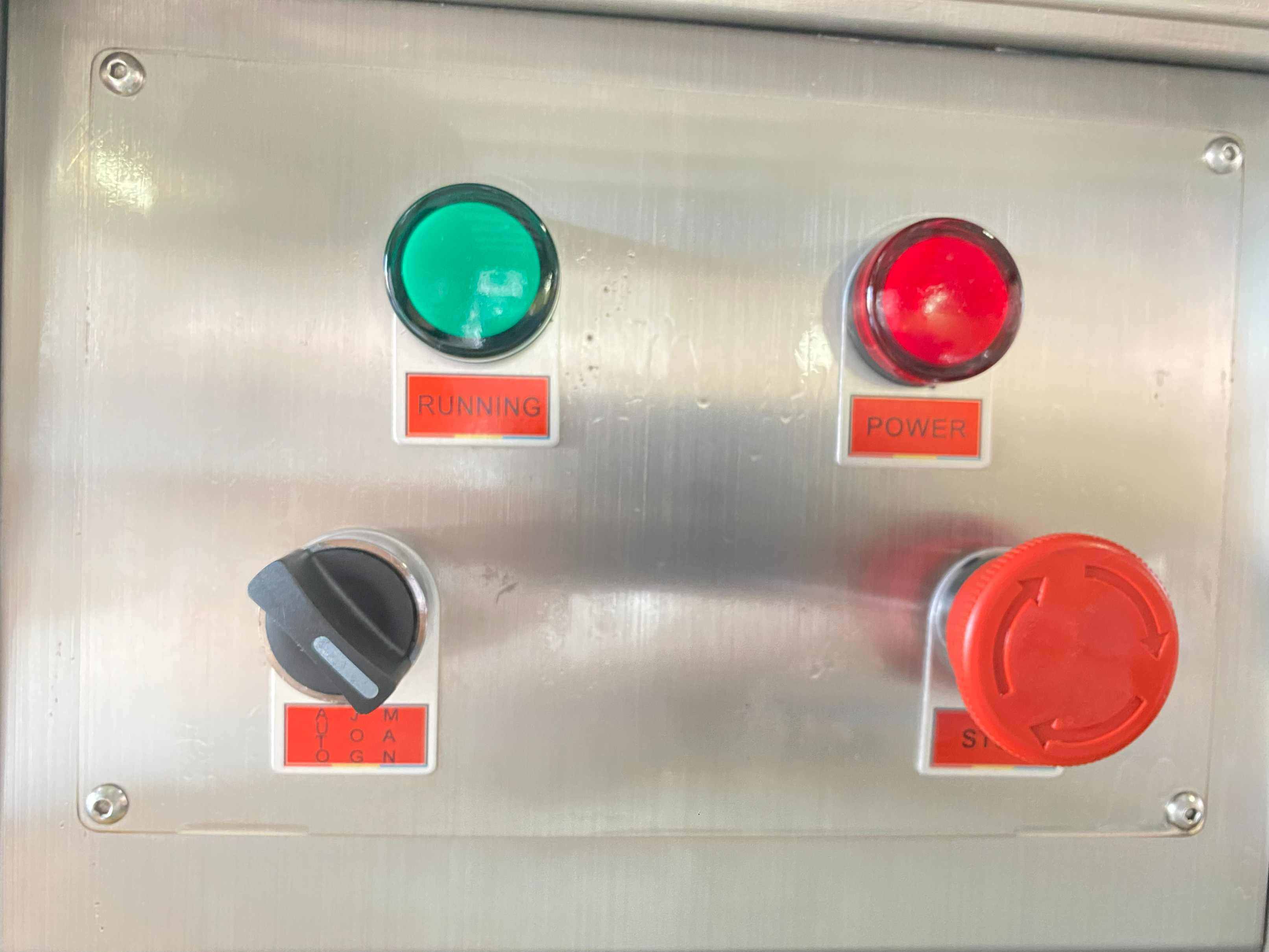

There are three modes - AUTO, JOG, MAN, and it is easy to shift and operate.

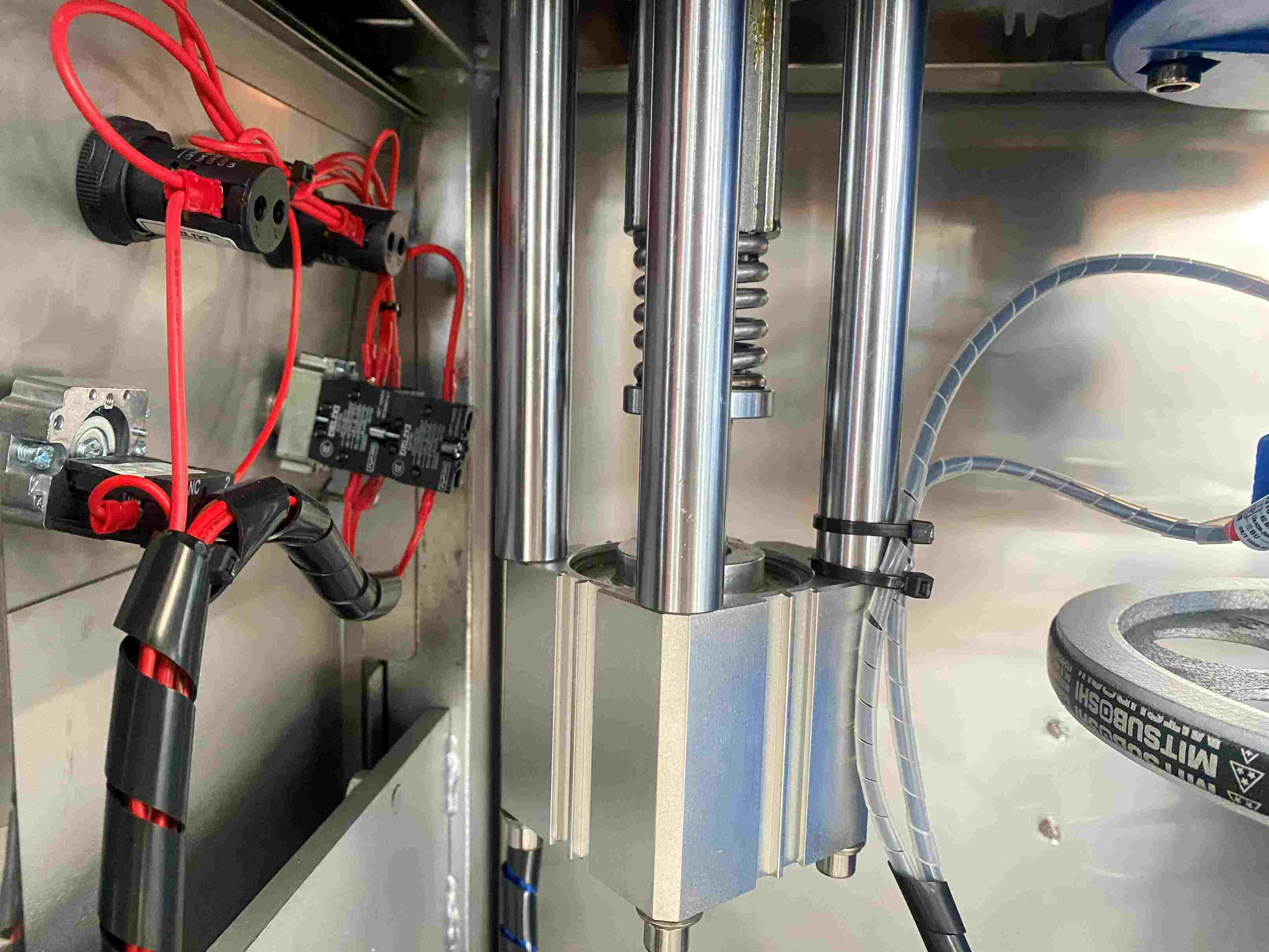

The tray of this kind can sealing machine is controlled by cylinder, and the sealing effect is better, especially for tin can and paper tube.
