1. Number of sealing head: 1
2. Number of seaming rollers: 4 (2 first operation, 2 second operation)
3. Sealing speed: 30 cans / min
4. Sealing height: 25-220mm
5. Sealing can diameter: 35-130mm
6. Working temperature: 0 ~ 45 ° C, working humidity: 35 ~ 85%
7. Working power supply: single-phase AC220V 50/60Hz
8. Total power: 1.2 KW
9. Weight: 480KG (about)
10. Dimensions: L235* W 95* H178cm
For the use of liquid sealing, easy to clean, and the equipment is waterproof.

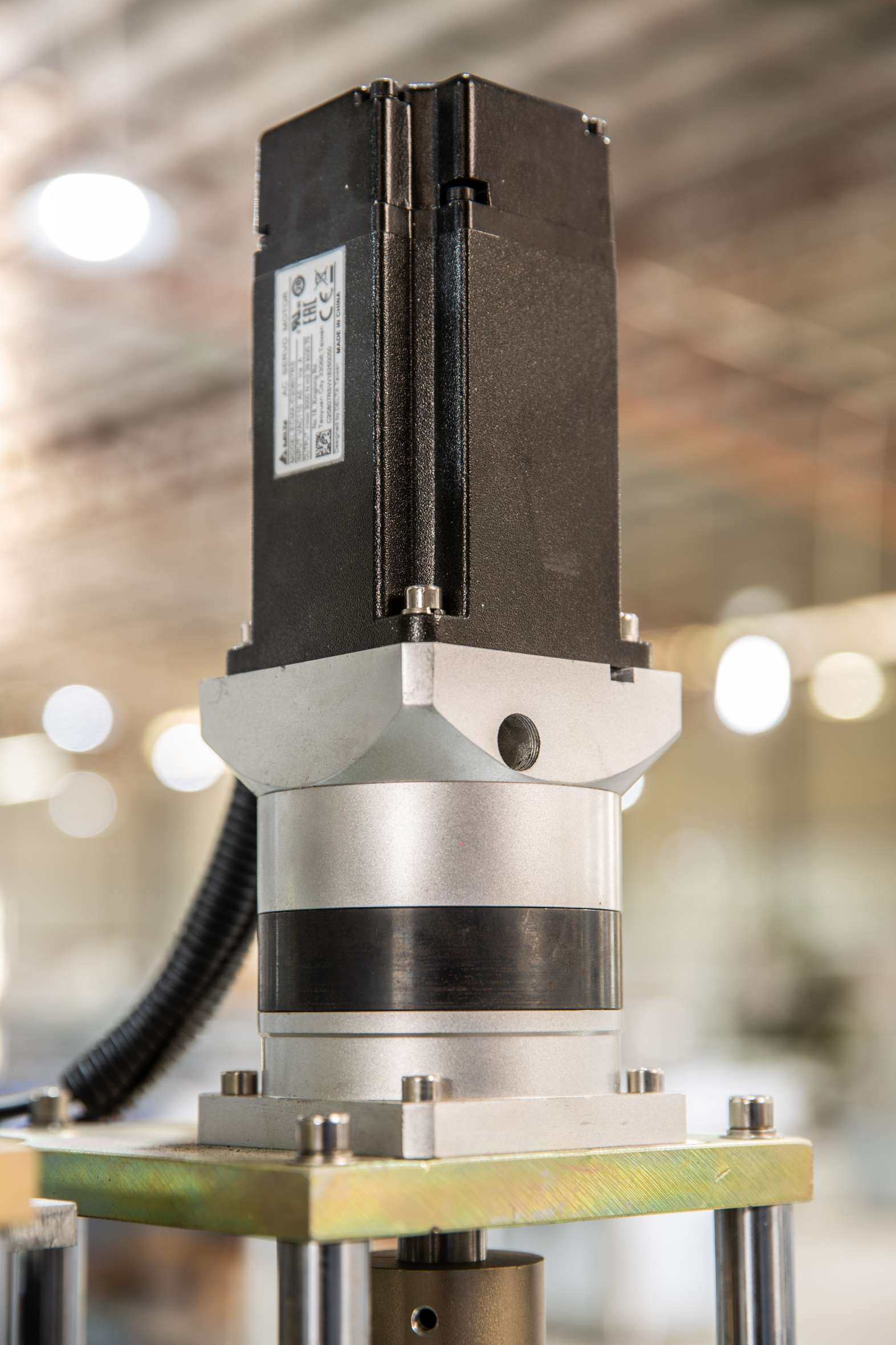

1.Whole machine servo control makes the equipment run safer, more stable and smarter.
2.The turntable only runs when there is a can, speed can be adjusted separately;
3.When there is can stuck, the turntable will automatically stop. After one button reset, the error can be released. Click “ Origin” button, the turntable return automatically and the machine will restart to run.
4. A total of 4 seaming rollers are completed at the same time to ensure high sealing performance.
5. The whole machine has a transparent blue acrylic cover, multiple protection, more beautiful and safe.
6.Applicable to tin cans, aluminum cans, plastic cans and paper cans, it is the ideal packaging equipment for food, beverage, Chinese medicine drinks, chemical industry etc.
The conveyor is put on the top of our fully automatic can sealing machine, which can be installed and dismantled easily. Besides, it’s easy to clean and maintain.

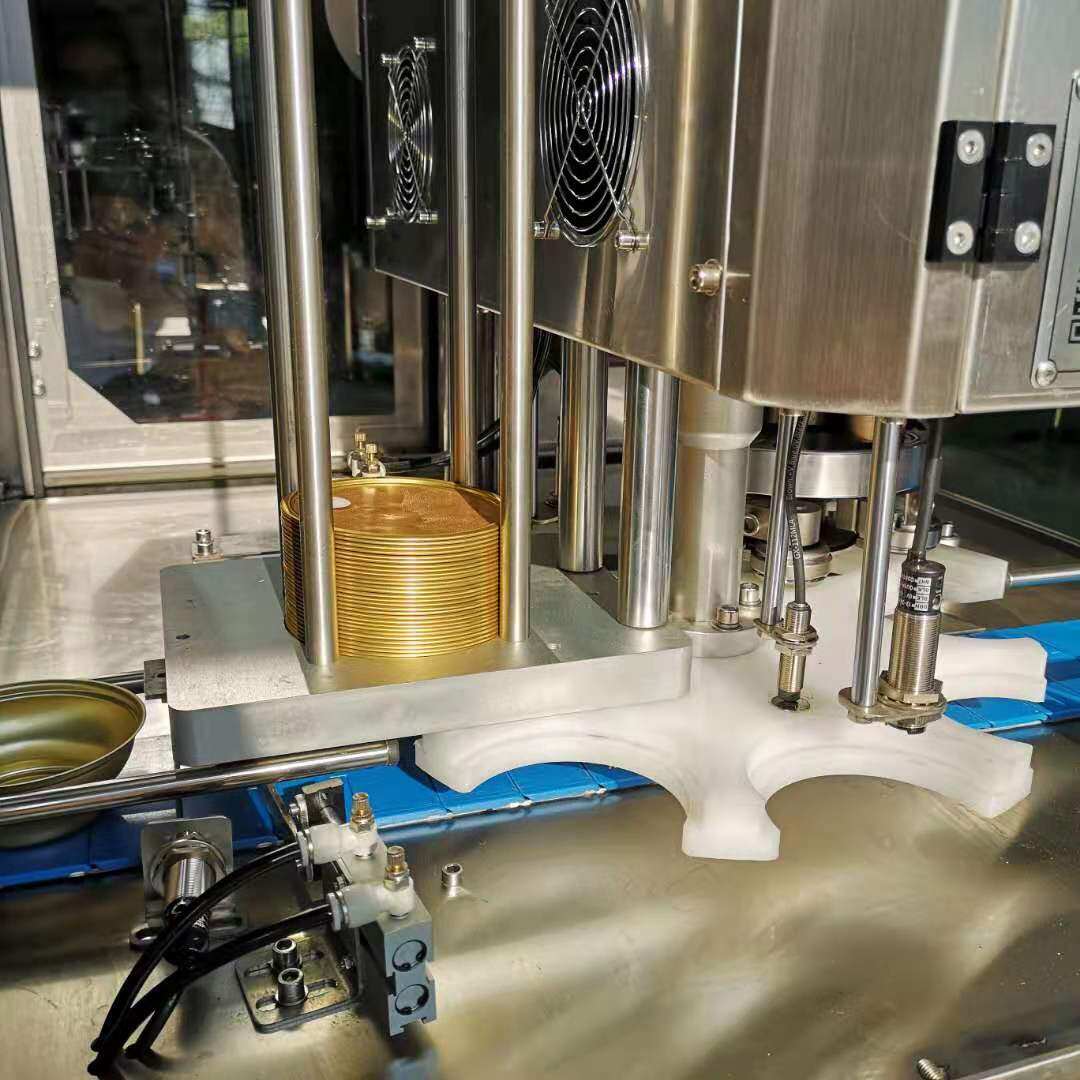

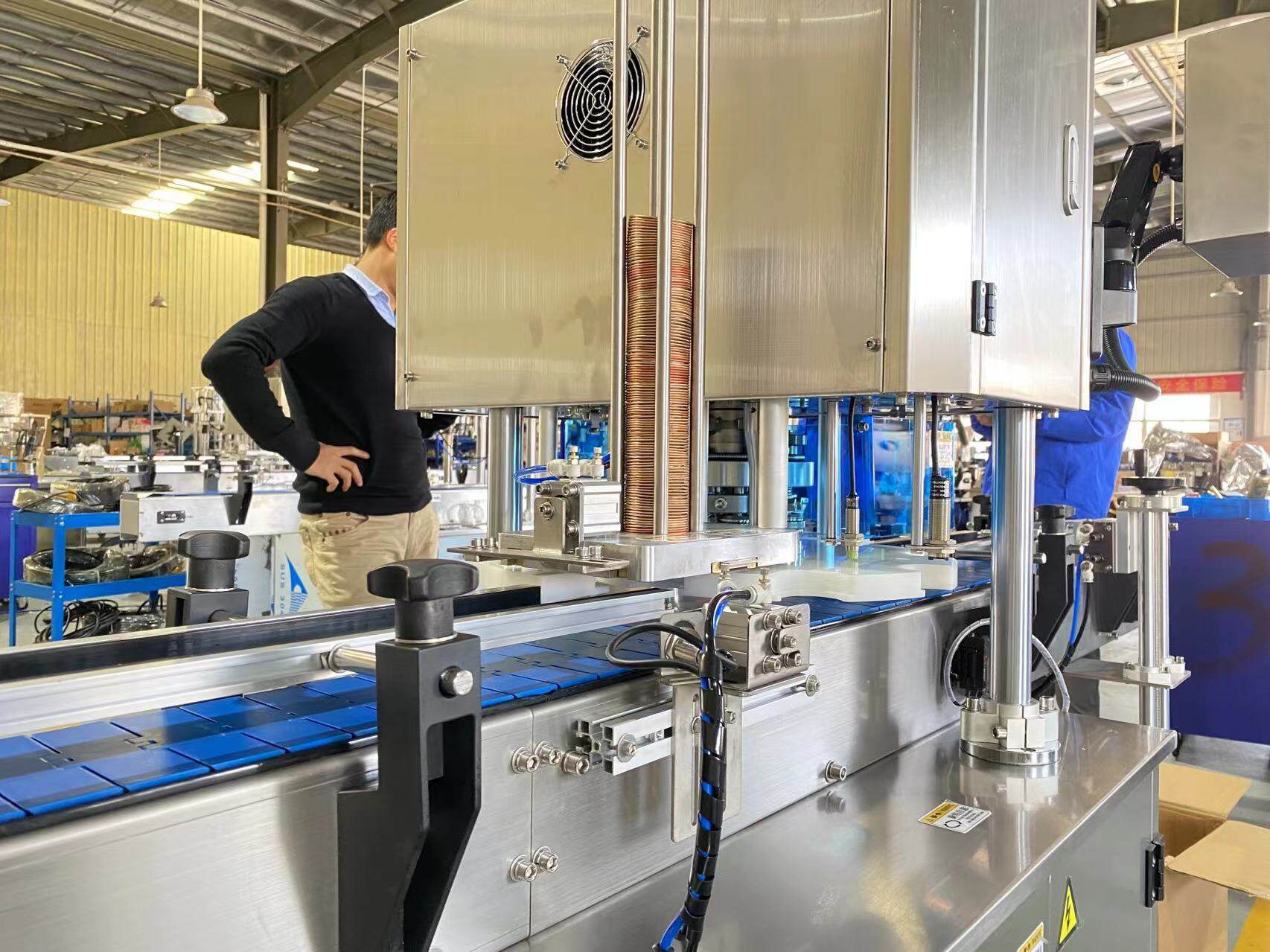

The material of our lids-feeder adopts aviation aluminum which cannot be rusty.
It can be put more than 260 lids, and no need to put lids frequently, improving production efficiency.

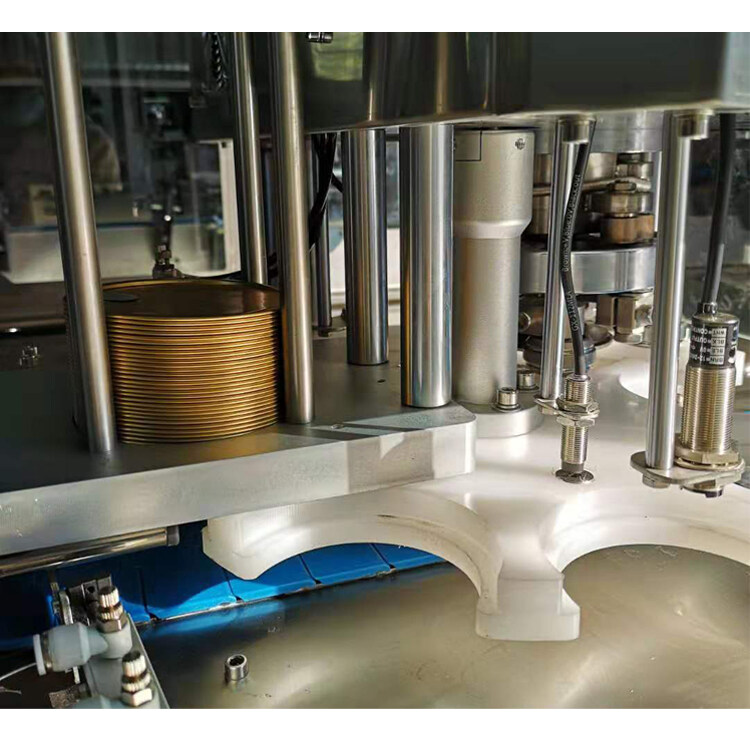

The turntable only runs when there is a can, and the turntable will automatically stop when there is a can stuck. After one button reset, the error can be released, and the machine restarts to run. When there is a foreign object stuck in the turntable, it will automatically stop running to prevent artificial Equipment damage and safety accidents caused by incorrect operation of the equipment.

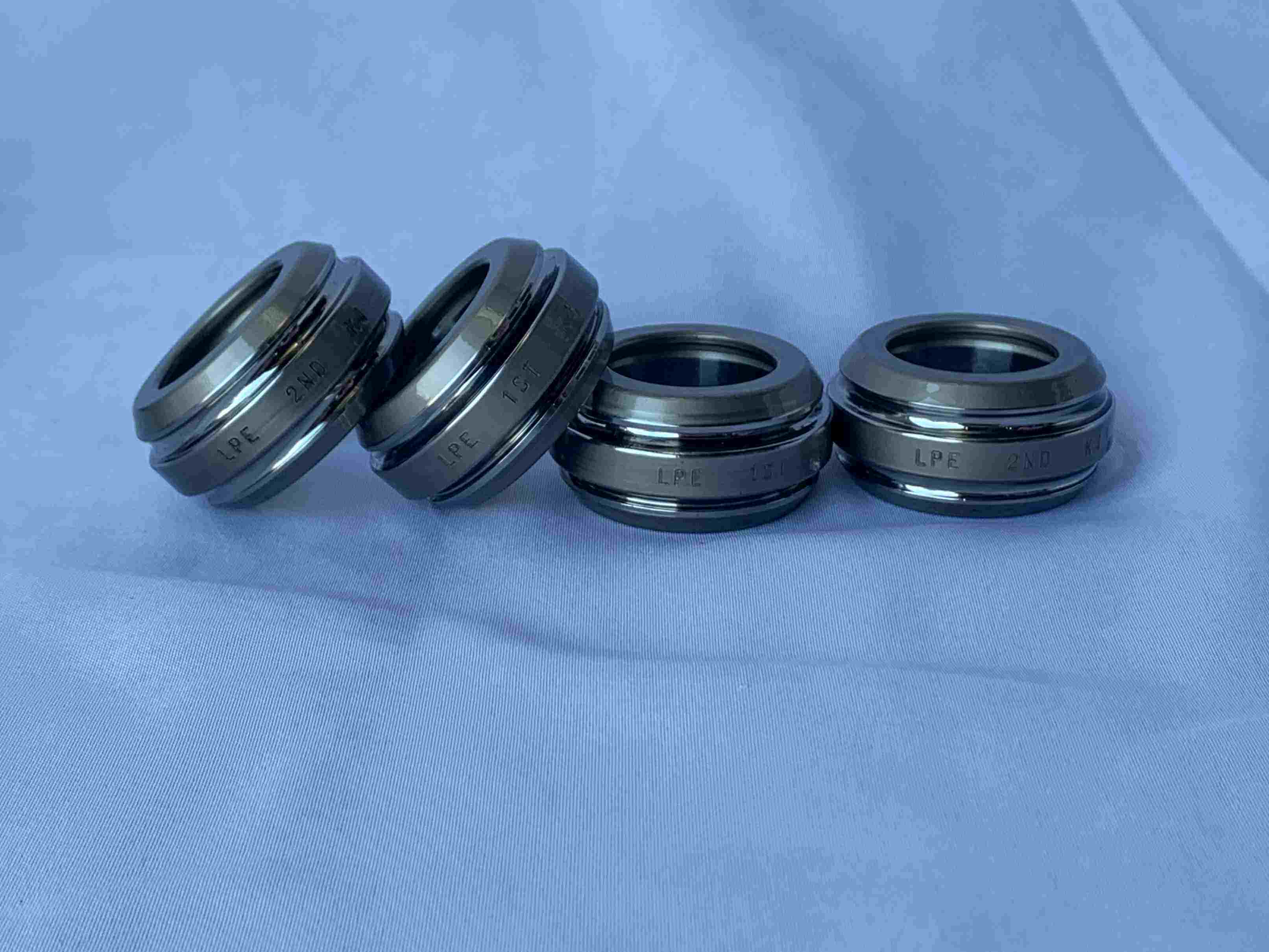

The roller is imported from Taiwan. The material of can seaming roller is made of SKD Japanese special mold steel, which has a life span of more than 5 million seals each side.
Adopting four seaming rollers from Taiwan, they are used for symmetrical installation. Two of them complete the hem, and the other two complete the crimping. The principle is simple, the adjustment is convenient, and the force is balanced.

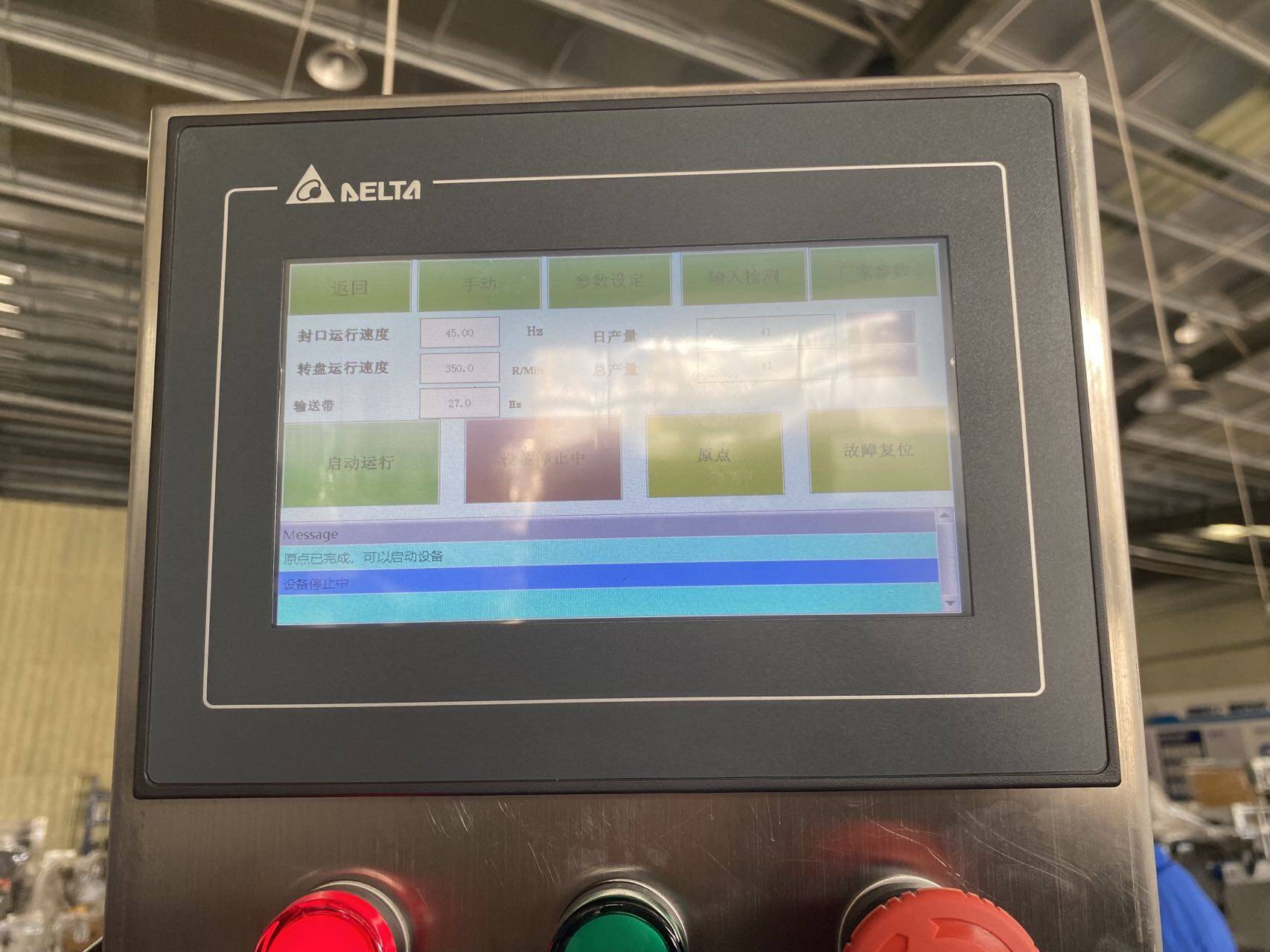

Imported PLC cooperates with touch screen man-machine interface, making the machine runs stable and easy to operate.
The touch screen is connected by a bracket, which can be operated in multiple directions, and is more flexible during operation.

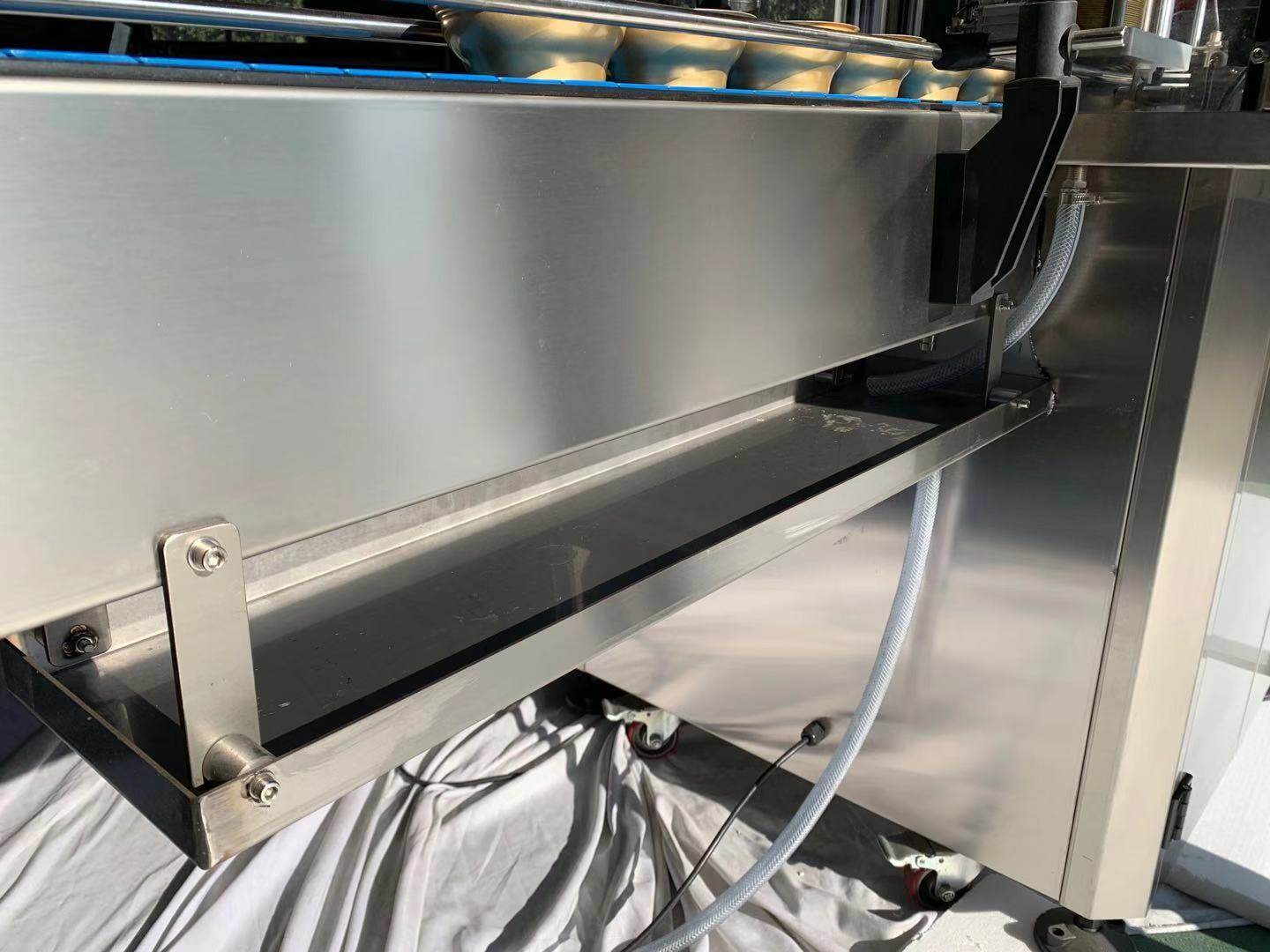

Water-proof
For the use of liquid sealing, easy to clean, and the equipment is water-proof. Equipped with the water-proof board, this kind can seamer machine allows CIP.
